홈 /제품 소개/코프 접착기/LCD TV Panel Repairing DOUBLE 960DH SCREEN PULSE HEAT PRESS COF CONNECTOR MACHINE FOR LCD LED TV SCREEN REPAIR

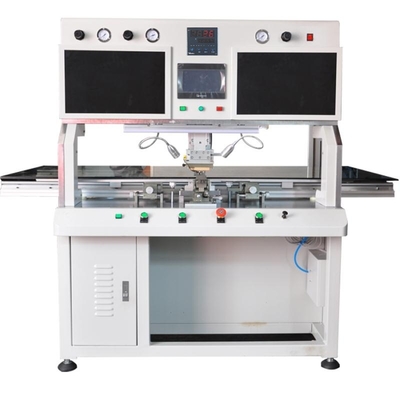

LCD TV Panel Repairing DOUBLE 960DH SCREEN PULSE HEAT PRESS COF CONNECTOR MACHINE FOR LCD LED TV SCREEN REPAIR

1.0 Units
MOQ
$4,599.00(1 - 99 Units) $3,599.00(>=100 Units)
가격
LCD TV Panel Repairing DOUBLE 960DH SCREEN PULSE HEAT PRESS COF CONNECTOR MACHINE FOR LCD LED TV SCREEN REPAIR
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Applicable Industries: LCD LED TV PANEL REPAIR MACHINE
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: PLC, Motor
Condition: New
Voltage: 230 AC
Power: 1200V PEAK POWER
Weight: 450KG
Dimension(L*W*H): 1930MM+220MM*1040MM
Warranty: 1 YEAR
After-sales Service Provided: Overseas service center available
Application: Lcd Tv Panel Repairing
Product name: ACF / COF/TAB /FOG BONDING MACHINE FOR TV SCREEN REPAIR
Type: PULSE HEAT PRESS
Name: LCD REPAIR MACHINE
REPAIR SIZE: 14 -85 LCD/ LED PANEL SCREEN
Suitable for: HD PANELS
Heating System: Pulse Heating System
Color: White
After Warranty Service: Video technical support, Online support
Local Service Location: None
인증: CE - CERTIFIED
기본 정보
인증: CE - CERTIFIED
결제 및 배송 조건
Packaging Details: Standard wooden carton package.
Supply Ability: 100 Unit/Units per Month
제품 설명
Product Description
LCD /LED TV Panel Repair Titanium Alloy Head COF Bonding Machine
* FPC / COF / TAB and LCD or PCB bonding.
* Repairing 2K, 4K and curved screen different sizes of LCD screen with high precision.

LCD PROBLEM SOLVED BY THIS MACHINE
ü vertical line,
ü horizontal line
ü black belt
ü color line
ü multi-line
ü white display
ü grey display
ü no picture
ü double image
ü ghost image
ü blue picture ...
Repairable size:
14"to 85"
Bonding Head Material
Titanium Alloy Grade 1
Bonding Accuracy
Up to Ultra HD 4K LCD panels
PID Temp Control
within 1 degree Precision
Bonding model
Automatic
PLC
up to 4 Bar
Bonding Head Size
50mm&67mm head
Cylinder Device
slide table
Camera
CCD Microscopy camera 200X zoom
working power
Peak power
800VA(single Phase-230V)
1200VA(single phase-230V)
LED light
inside crystal
Platform
Glass with vaccum function

AFTER SALE & SERVICE

Free professional training.
Warranty: One year.
Engineers available to service machinery overseas.

PACKING & DELIVERY

kWooden Packing
Machine Package: ( L*W*H ) : 1300 x 850 x 1690 mm ( L * W * H ) 340KG
Platform Package: ( L*W*H ) : 1930 x 220 x 1040 mm, 110KG

. DELIVERY

3 to 5 working days after payment
