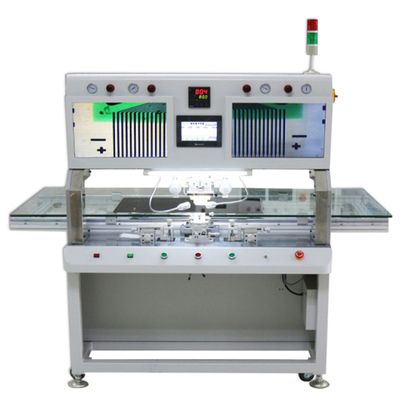

Main Features:
1, PLC control, pulse heating mode, combined with titanium alloy extrusion head, rapid heating and rapid cooling, can be set up four heating, accurate temperature control.
2, 5.7 "color touch screen LCD display input, realizing the temperature curve, according to the Chinese menu, all the parameters set browse concise and straightforward.
3, large load platform, stepper motor drive, multiple IC can be preset position, the platform automatically move the pressure to stay.
4, under the high magnification camera system, ensure that the product clearly counterpoint.
5, powerful software, perfect the system debugging, automatically detect fault and alarm function.
What Problem it Can Repair :
Vertical, horizontal, black belt, the black line, the color line, ribbons, multi-line, flower screen, black screen, white show, horizontal, vertical half and half fault, and so on.
Application: suitable for 12-80inch TFT Panel and TAB, FPC and LCD or PCB board combination bonding.
The LCD bonding machine Videa Link: https://youtu.be/oni6onC7Ifw
Technical Parameters:
Power: AC220V±10%, 50Hz, 4500W
Work environment: 10~60℃, 40%~ 95%
Work pressure: 0.5 ~ 0.7 Mpa
Welding stress: 5 ~ 28 KGF
Temperature Settings: one to four paragraphs
Temperature Settings: RT ~ 399 ℃
Hot pressing time: 1 ~ 99 s
Hot-pressing precision: pitch 45um
Production capacity: 35 s/TAB or COF package
Hot pressing head size: MAX 60 x 8 mm
Fuselage size: 1508 mm (L) x 1245 mm (W) x 1483 mm (H)
weight: About 300 kg
Other machine :
Our advantage
1,Ten years experience ; vacuum oca lamination machine
2,All machine with CE approved;
3,High Brand reputation around the world; vacuum oca lamination machine
4, Professional service and technology support
5,Competitive price with good quality vacuum oca lamination machine
Our Service
1,Your inquiry will be replied in 24 hours. vacuum oca lamination machine
2,Offer free spare parts and service within one year of warranty.
3, Free training and whole life technology support by Zhuomao factory / local office overseas / third party
Payment and Delivery vacuum oca lamination machine
Accept by wire transfer (T/T), Western Union, Paypal, Moneygram, L/C.
2~ 5 working days for all model, to ship after payment.
By DHL, by Air, by Sea, by Truck etc. vacuum oca lamination m
achine
