제품 사양

Condition: New

Weight (KG): 350

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Hot Product 2019

Warranty of core components: 1 Year

Core Components: PLC

Warranty: 1 Year

Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Retail

Showroom Location: china

Product name: tab cof bonding machine

Hot pressing bonding machine: press 2k and 4k

Suitable for: 14''-65'' screen

After sales Service Provide: Free training

인증: CE

Usage: TV screen repair

Keyword: led panel repair machine

Type: TFT

Packing: wooden case

Shipping: within 7days

기본 정보

인증: CE

결제 및 배송 조건

Packaging Details: WOODEN OR CUSTOMMIZABLE

Supply Ability: 1000 Set/Sets per Month

제품 설명

Product Overview

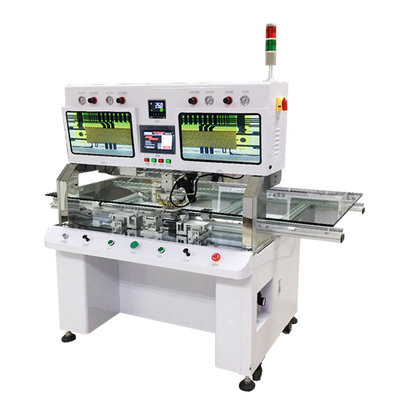

Hot Press Machine

This product is used in a variety of FPC, COF, TAB and LCD Panel and PCB combination bonding, is reflected in a variety of sizes LCD vertical, horizontal, vertical band, horizontal belt, black belt, black, colored thread, ribbon , multi-line, black, black and white, vertical half display,horizontal half breakdown maintenance.

Device Features

Single head ,single pneumatic device, single temperature control Multi-speed pulse source design to meet the power requirements of diversified product pressure.

Screen repair equipment, LCD repair equipment, COF/TAB bonding equipment, etc.

FEATURES AT A GLANCE

Right elevation

Front elevation

Left elevation

PRODUCT SPECIFICATIONS

No	Item	Data
1	Rated voltage	AC 180-220V
2	Peak power	400-1100W (support 68X1.4X10 wide bonding head)
3	Equipment process time	TFT，3.8S/chip
4	Production beat	TAB，100pcs/H
5	Bonding accuracy	±1.5µm (support 4K)
6	Supply pressure	0.1~0.7Mpa Dry air source
7	Power supply	AC 220V±10%，50HZ，3500W
8	Panel type	TFT

About us

We are from Weicai Electronics Technology Co.Ltd which locate in Guangzhou,china.we are direct manufacturer.

We are specialize in laser machine and bonding machine for repair TV LCD screen,light bar and acf tape and accessories more than 8 years.

We own R&D Department and professional engineer too.Support free training and Video factory audit.

SALES AND SERVICE NETWORK

Packing

We are packing by wooden

Customizable

Supporting the custom packing

Global shipping

We are accept EXW price and shipping global

Certification
